Description

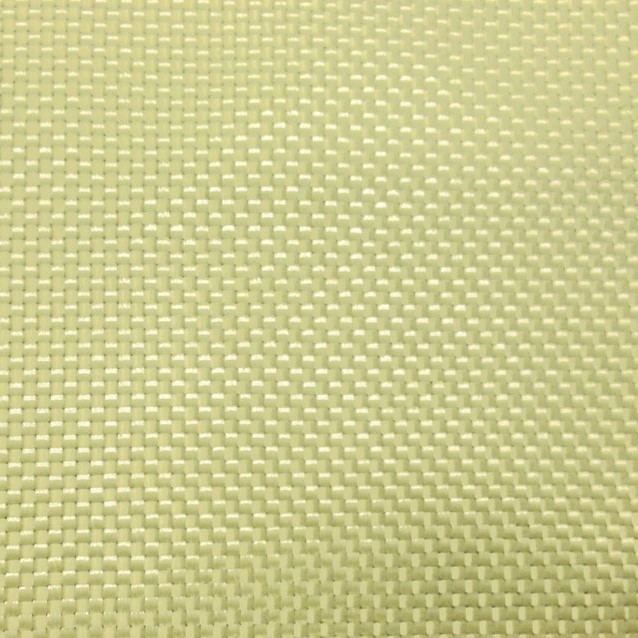

The 1.7 oz. Aramid is a high tensile strength and high modulus plain weave fabric woven from KEVLAR® fibers. The plain weave provides fabric stability but due to the fabric construction the aramid fabric is less pliable. Though it is a little stiff for highly contoured molds, it does offer uniform properties, maximum stability and simple surfacing characteristics. It is ideal for applications that require stiffness, lightweight and high abrasion resistance.
It offers superior wet-out capability because it is sized with a coupling agent that provides a chemical bond between the aramid fiber and various resins. It is suitable for use in wet layup, vacuum bagging and resin infusion manufacturing and is compatible with polyester, vinyl-ester and epoxy resins.
KEVLAR® is a registered trademark of E.I. du Pont de Nemours and Company and is used with permission.
***Expired Material***
Sold “As Is”, Nonrefundable and will not be backordered.
Technical
Physical Properties
- Style: 120/350
- Weave: Plain Weave
- Weight: 1.7 oz/yd²
- Thickness: .0039″
- Fabric Count (Warp x Fill): 34 x 34
- Warp Fiber: Kevlar® 49, 195 denier
- Fill Fiber: Kevlar® 49, 195 denier
Technical Fiber Properties
- Fiber: Kevlar® 49, 195 denier
- Density: .052 lb/in³
- Breaking Strength, Warp: 260 lbf/in
- Breaking Strength, Fill: 260 lbf/in
- Coefficient of Thermal Expansion: -2.4 x 10^6/°C
Please note: All data to be used as a guide only; not a specification. KEVLAR® is a registered trademark of E.I. du Pont de Nemours and Company and is used with permission.
Documents
Compatibility
- Epoxy Resin
- Polyester Resin
- Vinyl-ester Resin
Clearance
Items starting with an “x” are product that are being sold as Clearance/Excess item(s). Items may be excess inventory that does not meet the stringent specifications of medical or aerospace applications, have blemishes and/or other imperfections as noted in the product descriptions. These items are sold “As Is”, are nonrefundable and will not be backordered. If an ordered quantity cannot be fulfilled, we will ship available on hand quantities and automatically cancel any remaining balance.
